Air Circulation and Cleaning System

1 System for fine dust removal

AIR CIRCULATION AND CLEANING SYSTEM BY PATENTED TECHNOLOGY

ALLSWELL adopts own patented technology to tightly manage the air quality for target space with the only 1 facility
to provide pleasant air quality in all spaces.

DIFFERENTIATION OF ALLSWELL AIR CIRCULATION AND CLEANING SYSTEM
  • Design of a single-installed air circulation and
    cleaning system for large spce

    A system specialized in the formation of air flow without dead zone
    and large indoor spaces

  • Sufficient air volume

    Clean up to 15 times larger area than competitors

  • Formation of air circulation flow

    Accommodate multiple people at the same time
    / Cost savings for heating and cooling

  • Easy to install and manage

    Easy to install and maintain a single system

REFERENCES(OOOO school Gym in Incheon, Korea)

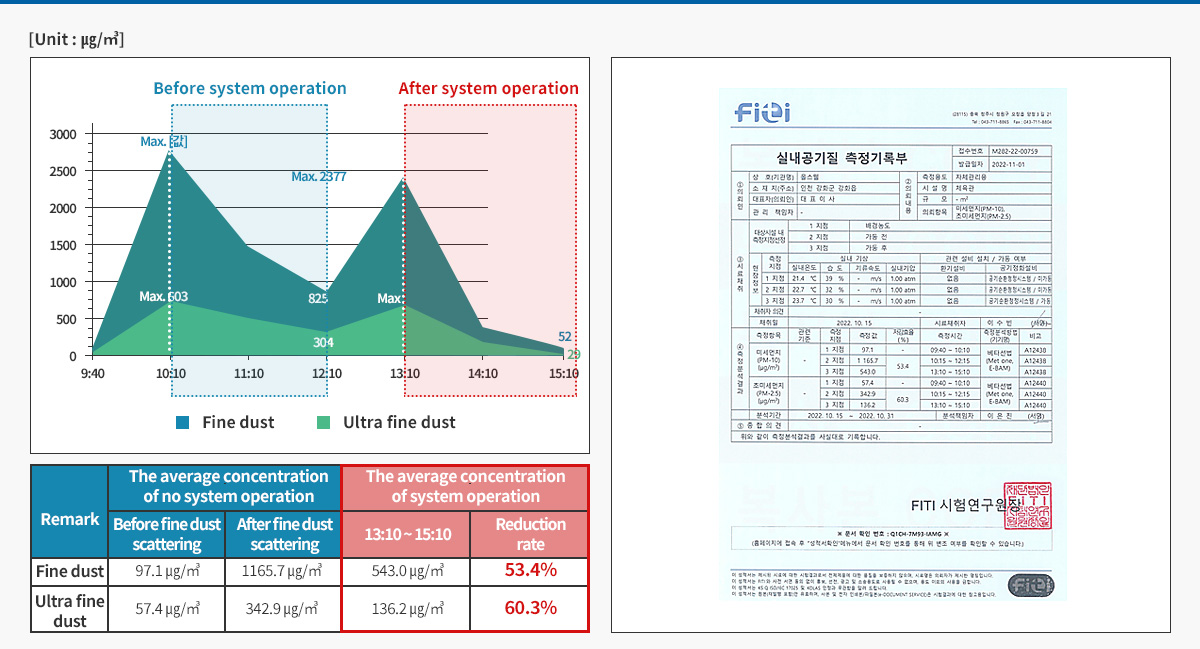

Fine dust concentration changes by system operation

  • Date of test: Oct 15, 2022 09:40 ~ 15:10(5.5hrs)
  • Institution of test: FITI (KOLAS certified)
  • Contents of test : Amount of fine dust inside the school gym(background fine dust concentration check), Amount of fine dust after scattering ISO 12103-1
    and A2 Fine Test Dust, Amount of fine dust after operating the system(performance of fine dust reduction effect check)

Fine dust concentration changes by system operation(Average)

AIR CIRCULATION AND CLEANING SYSTEM

Overall shape

Reflects out side air

  1. The ventilation volume
    and system based
    on local regulation

  2. A single-installed air
    circulation and cleaning
    system for large spce and
    easy to maintain the system

  3. Formation of
    air circulation
    flow for target spaces

  4. A type of air circulation and
    cleaning system not exisiting before.
    Responsible for childeren's health with new technology

  5. Excellent purification
    efficiency

AIR CIRCULATION AND CLEANING SYSTEM(20*10 GYM)
  • Overall shape

  • Top view

  • Front view

  • Side view

  • Duct shape

    * Size may change due to site conditions

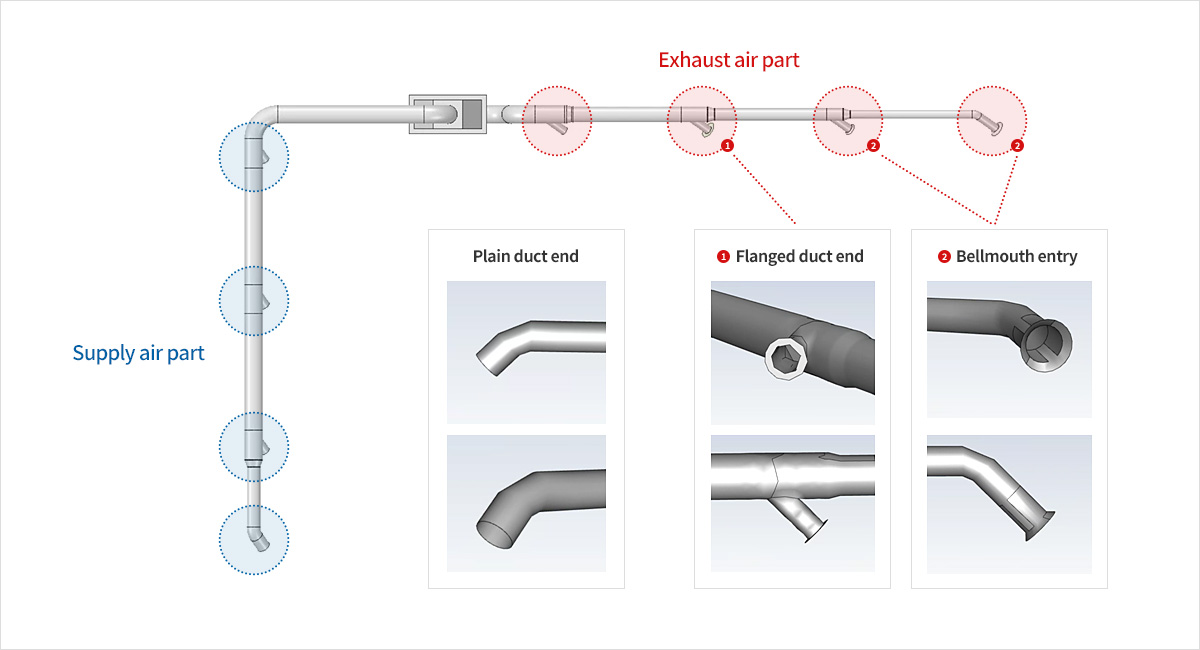

Exhaust/Supply air shape

  • * Shape and quantity may change due to site conditions

Exhaust/Supply air shape

* Shape and quantity may change due to site conditions

AIR CIRCULATION AND CLEANING SYSTEM

ALLSWELL provides pleasant air quality in all spaces.

ALLSWELL adopts own patented technology to tightly manage the air quality for target space
with the only 1 facility to provide pleasant air quality in all spaces.
Multiple computer simulation ensure optimized performance from the system development stage.

CFD air flow

Design value (DSBM)

CFD

Maximizing purification efficiency
with accurate design by DSBM(Duct Segment Balancing Method) and CFD

CFD Particle

    • Particle size2.5㎛
    • Density2,000kg/㎥
    • Dust concentration75㎍/㎥
      0.000105kg/s
    • Ultra fine dust concentration inside the gym25.86㎍/㎥
DESIGN TECHNOLOGY FOR SCHOOL GYM

Patent technology for school gym

  • Ventilation system
  • Ventilation system for large spaces
  • Duct device and ventilation system including
  • Nozzle coupling frame for air purification system
  • Stack rain caps
  • Ducts for removing contaminations on the stack
  • Negative pressure air distributor
  • Air circulation and cleaning system
  • Air circulation and cleaning system
TEST REPORT

High efficiency large Pre Filter

High efficiency HEPA Filter

Noise
